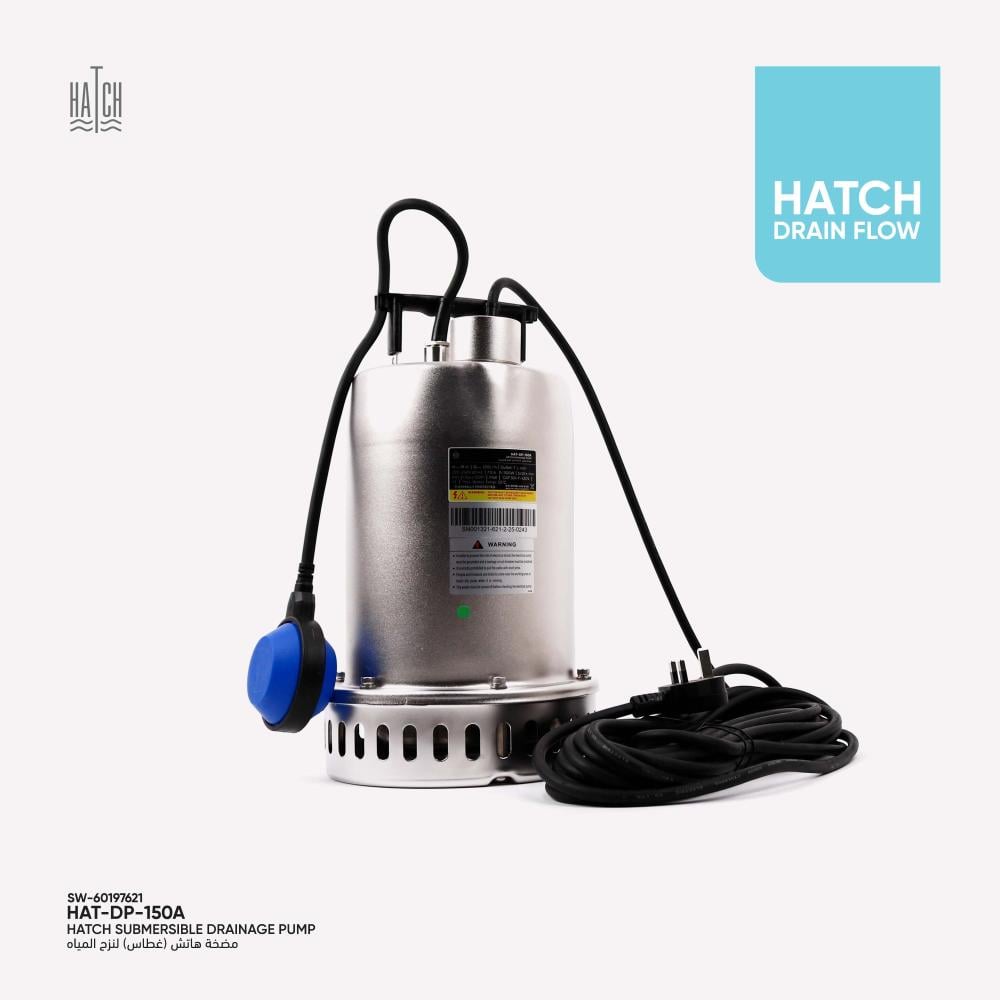

Submersible Drainage Pump HAT-DP-150A

The pump automatically Drain the water, The float switch controls the water level, activating the pump when the water rises and stopping it when the level drops. This guarantees efficient, hands-free operation for effective water drainage management.

Applications:

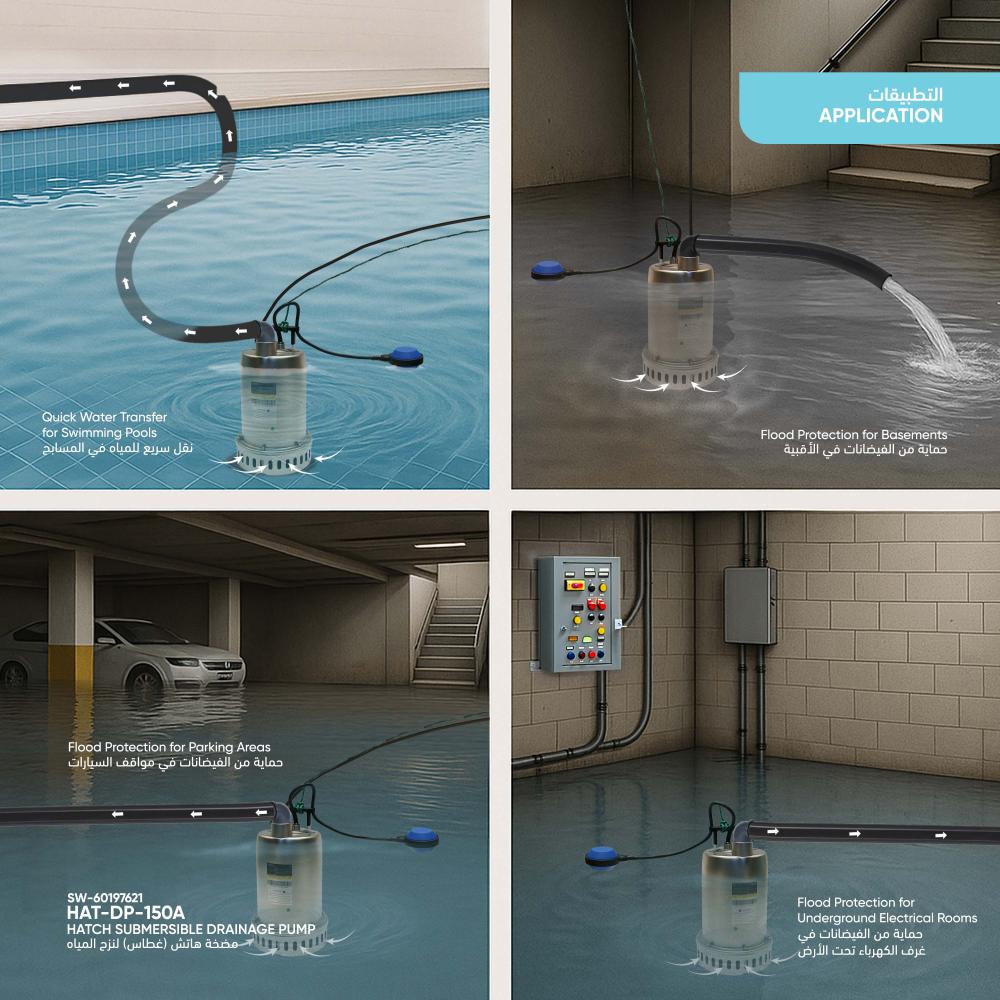

-The HATCH stainless steel submersible pump is designed to transfer clean or slightly dirty water, or other liquids with similar physical and chemical properties. Ideal for use in wells, pools, or basements, it efficiently lifts and drains water, making it a versatile solution for various water drainage management needs.

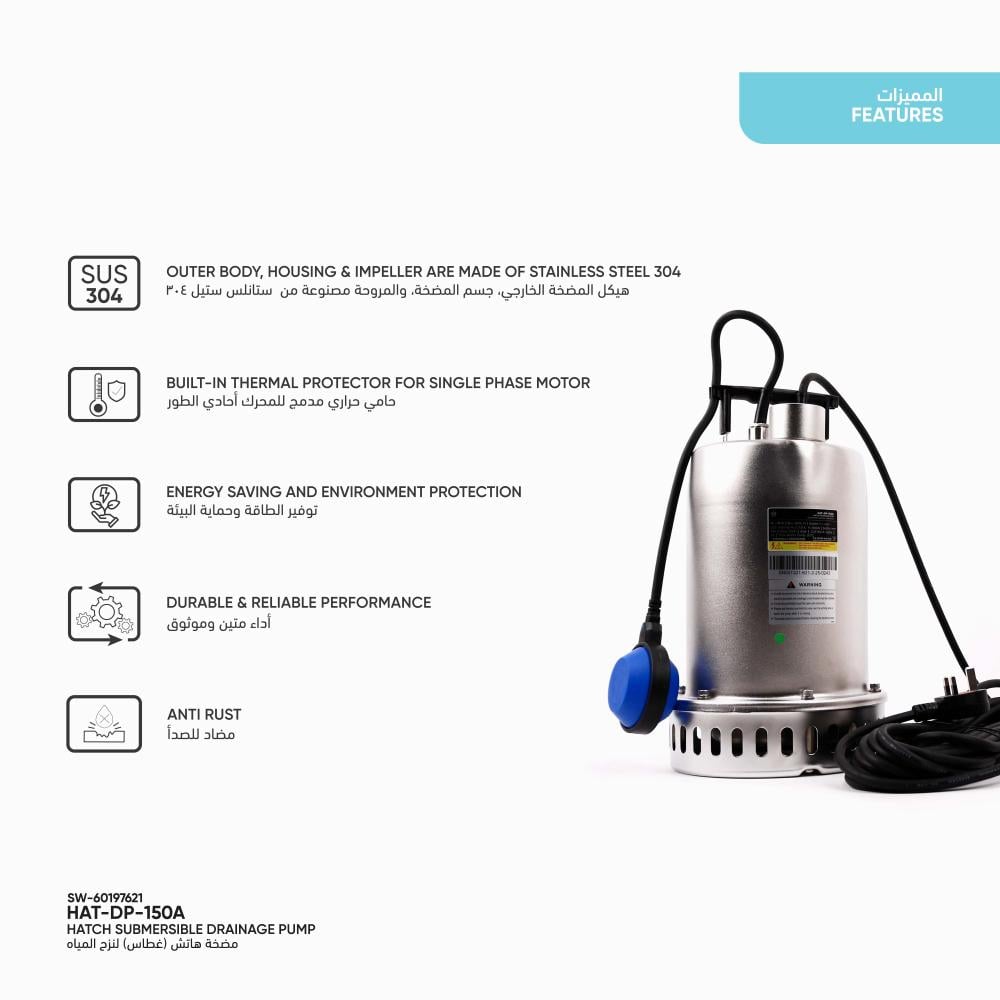

Pump Features:

• Built-in thermal protector for single phase motor.
• Pump housing: Stainless steel
• The Impeller is made of stainless steel SS304 to ensure durability and rust resistance.
• SS304 stainless steel outer body to ensure durability and rust resistance.
• ENERGY SAVING AND ENVIRONMENT PROTECTION
• DRY RUN PROTECTION
• The pump is capable of handling particles with a maximum diameter of 10mm, ensuring reliable performance even with water containing larger debris.

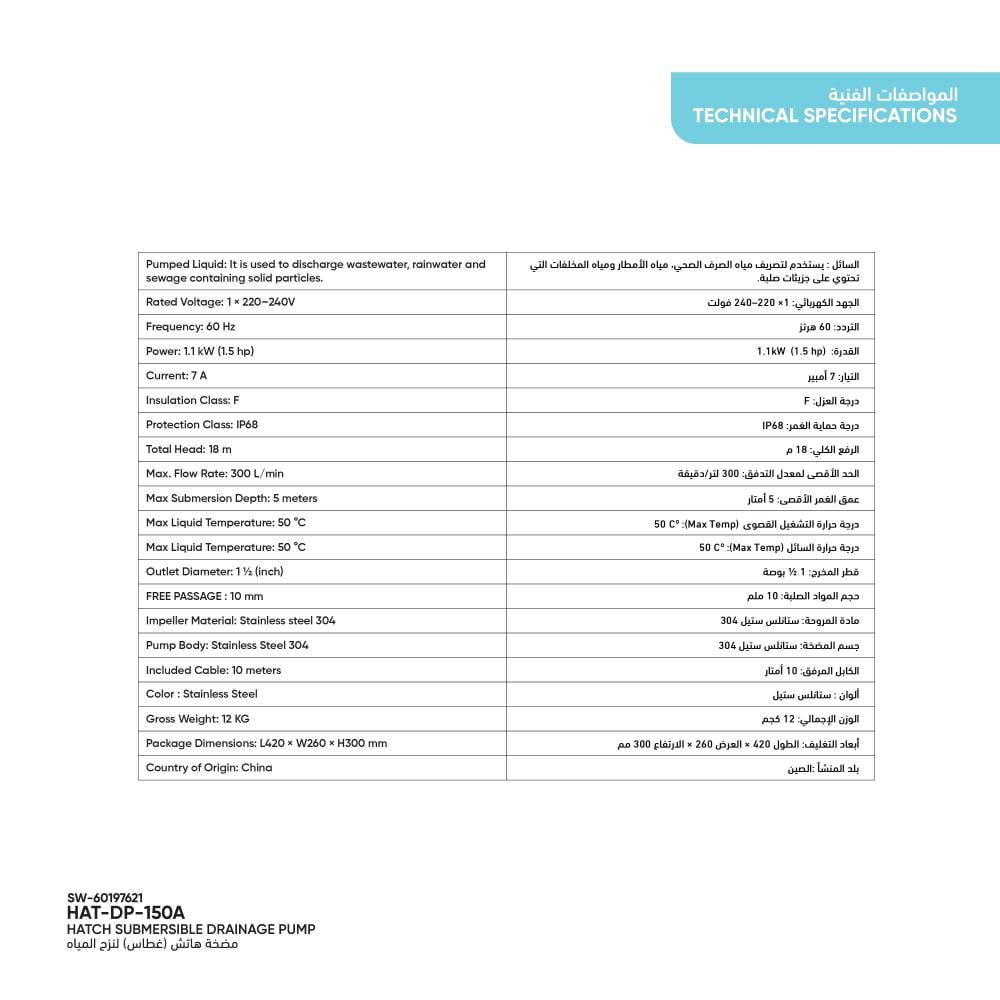

Technical Information:

• pump is designed to transfer clean or slightly dirty water, or other liquids with similar physical and chemical properties
• Rated Voltage: 1× 220–240V
• Frequency: 60 Hz
• Power: 1.1 kW (1.5 hp)
• Rated Current: 7 A
• Insulation Class: F
• Protection Class: IP68
• Total Head: 18 m
• Max. Flow Rate: 300 L/min
• Max Submersion Depth: 5 meters
• Operating Temperature Max: 50 °C
• Max Liquid Temperature: 50 ℃
• Outlet Dia: 1½ (Inch)
• FREE PASSAGE: 10 mm
• Impeller Material: Stainless steel 304
• Pump Body: Stainless steel 304
• Included cable: 10 meters
• Color: Stainless Steel
• Gross Weight: 12 KG
• Package Dimensions: L420 × W260 × H300 mm
• Model No: HAT-DP-150DA
• Color: Stainless Steel
• Product Weight: ±10.5 KG

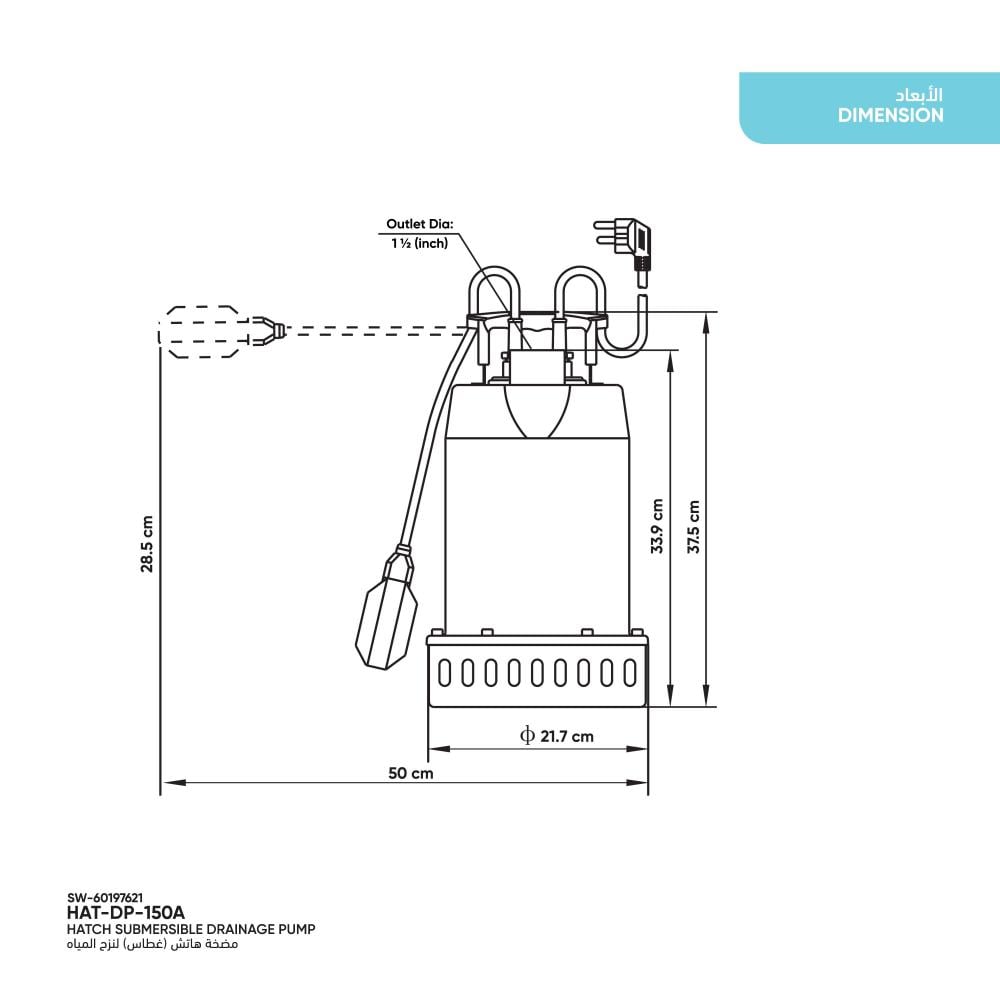

• Product Size: 375 x Ø 211 mm

Warranty: 2 Years

Country of Origin: China
