Ultimate 12 Hatch Concealed Flush Tank for Floor Chair

Material: One-piece tank made of high-density polypropylene without stand

Main specifications:

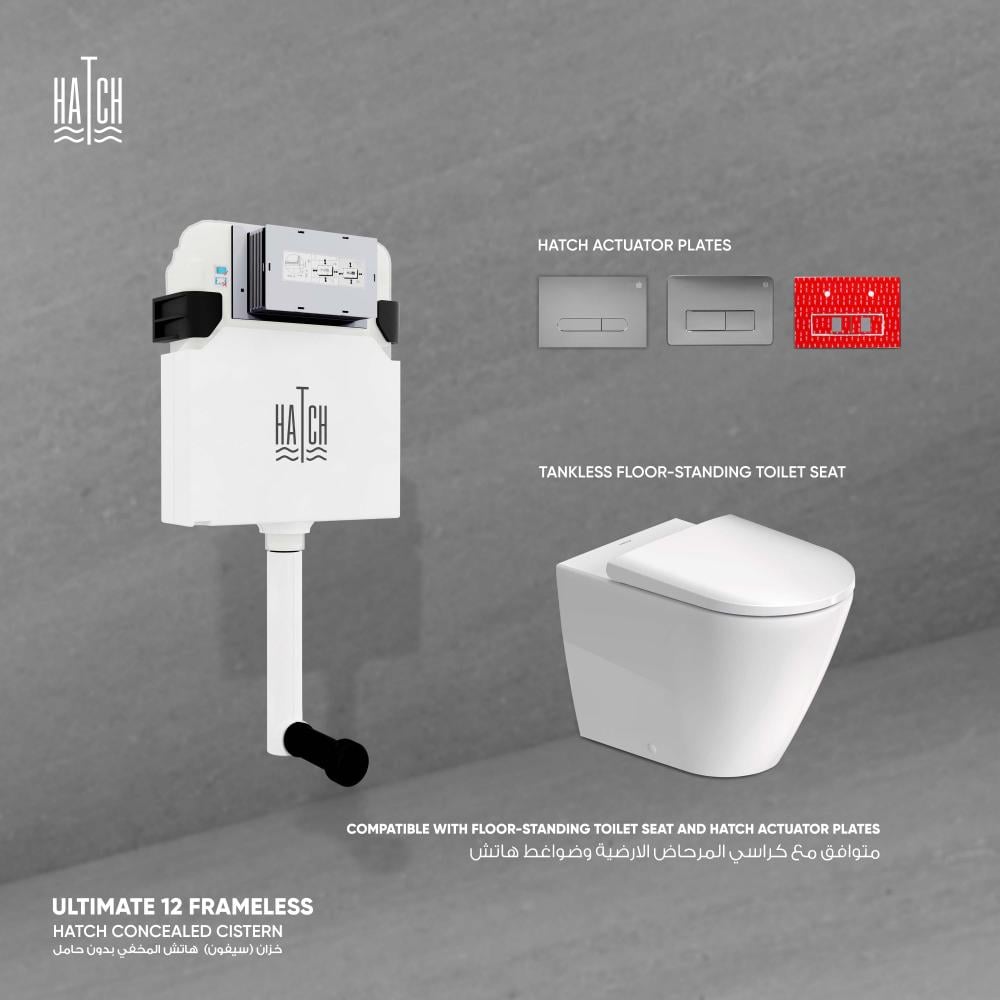

• Compatible with Toilet seats (floor flush) and traditional toilet (squat)
• Compatible with Hatch concealed tank compressors
• Provides two water flow levels: half flow from 2.8 to 3.2 liters in the compressor and full flow from 4.3 to 4.7 liters in the compressor.
• High quality one-piece tank made of high density polypropylene.
• The tank surface is covered with treated foam, preventing the formation and accumulation of water droplets or vapors on the surface.
• Top or rear feed inlet with brass (sugar) valve and 304 stainless steel fittings
• HDPE feeding tube
• A protection box for the compressor installation inlet and plugs for the feed and discharge pipes to prevent the entry of dirt and dust during the installation process.

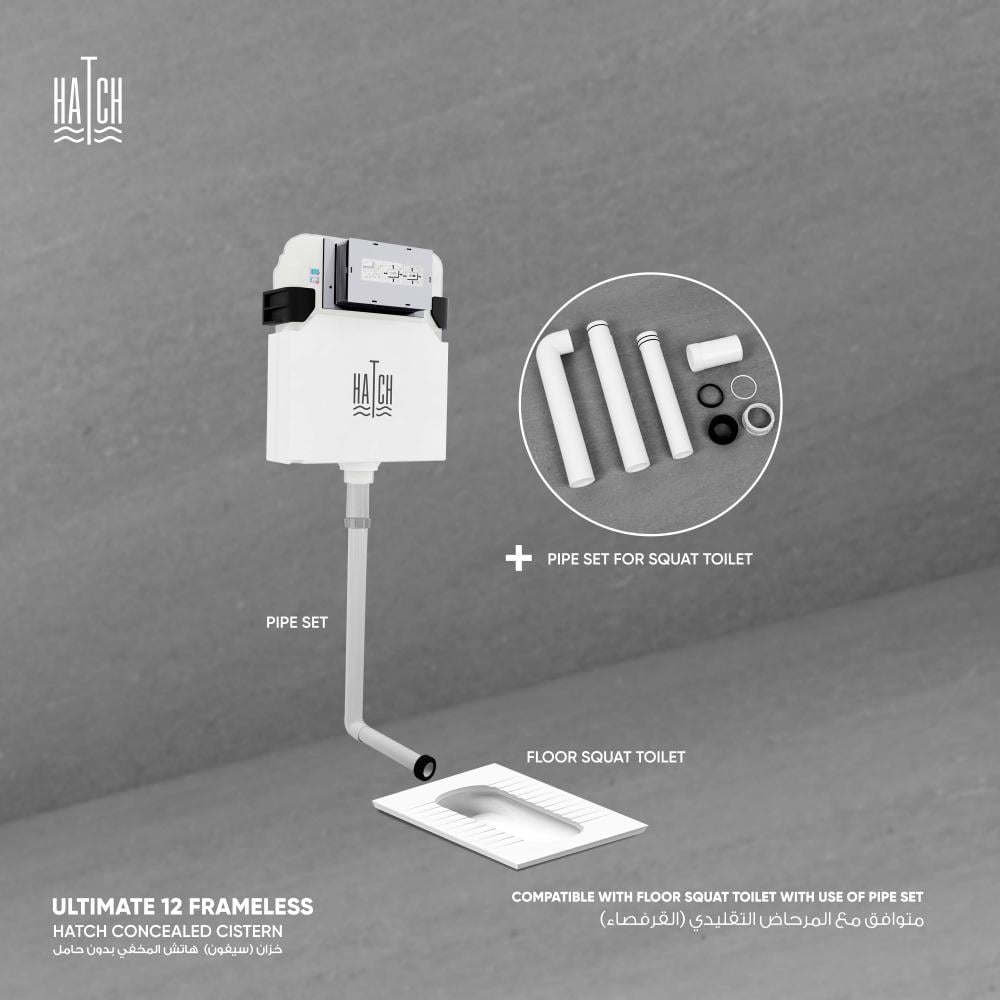

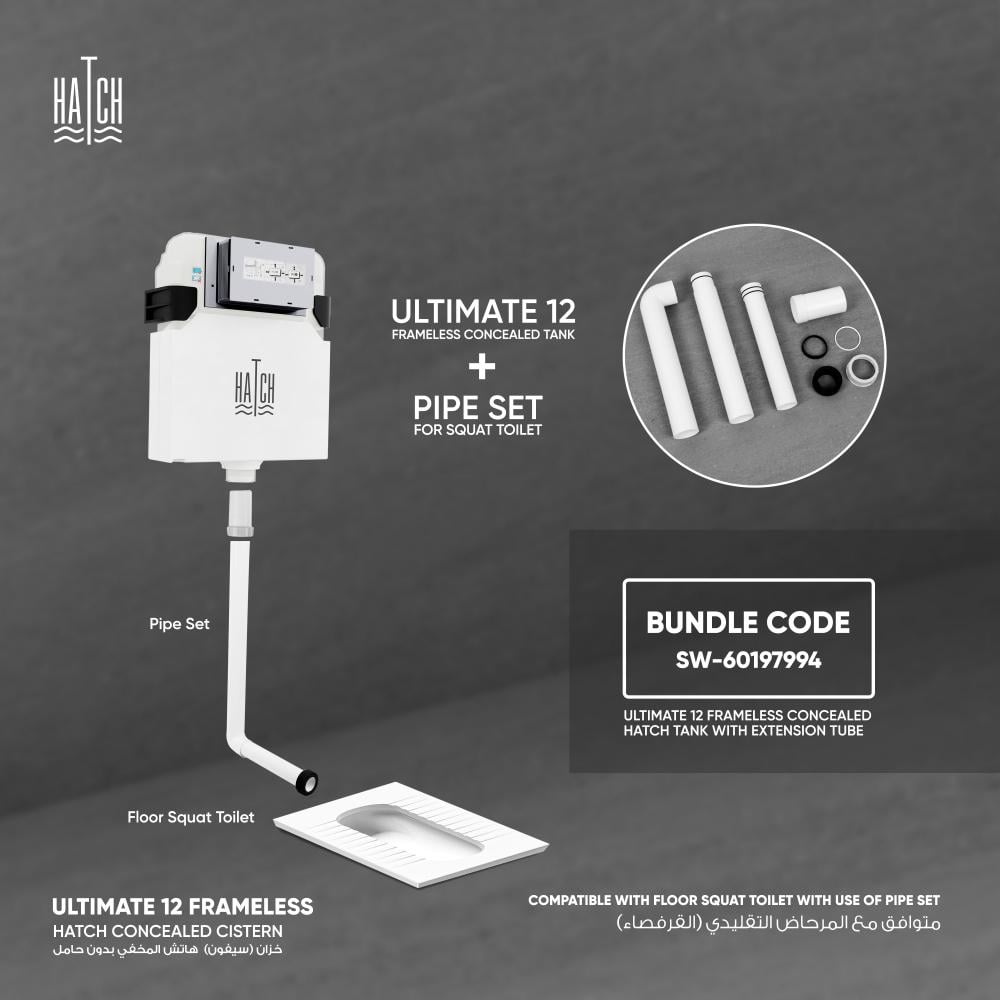

• It can be used for installation with a conventional toilet using Hatch tank extension pipes

Water consumption: 3.21 liters/compressor.

Pressure: from 0.2 to 8 bar.

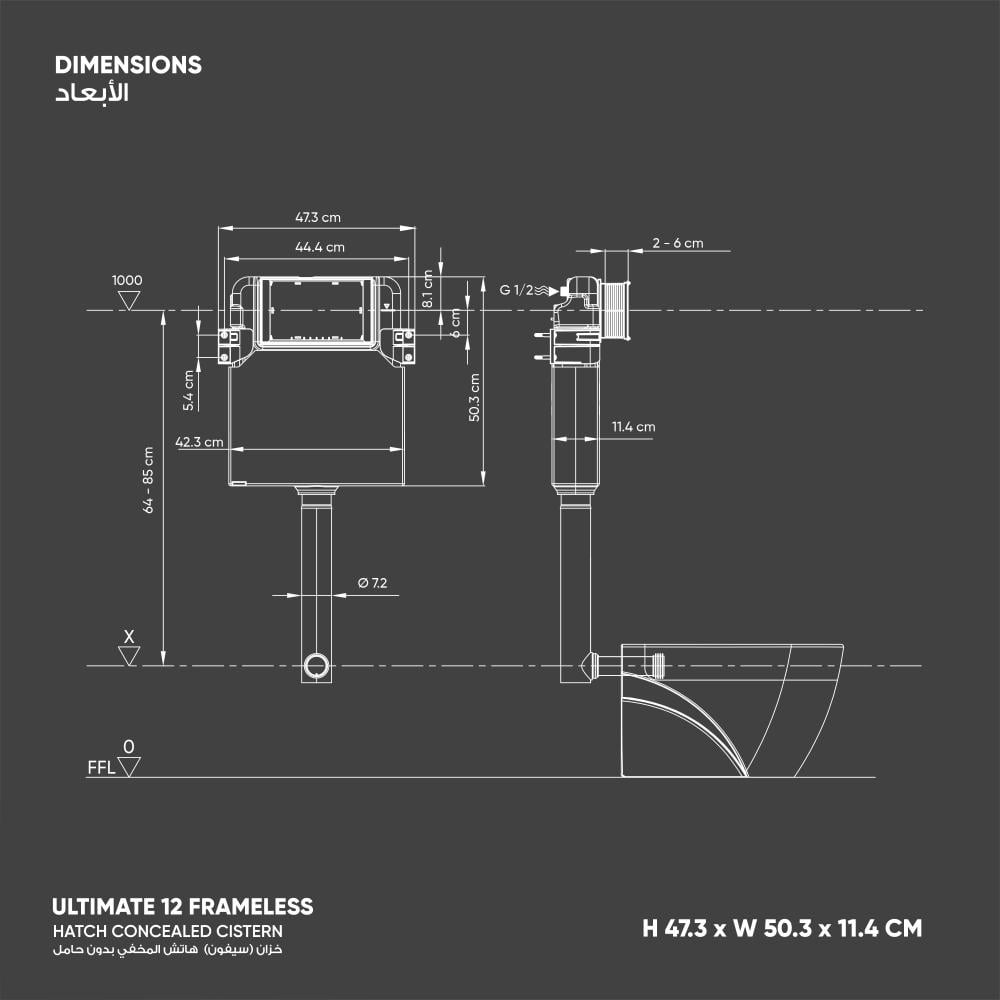

Product Dimensions

• 50.3 cm x 11.4 cm x 47.3 cm

Installation type:

• For wall installation before or after finishing
• Water supply inlet (opening) from the top or back
• Compatible with toilet seats (floor flush) and conventional toilets (squatting)
• Compressor mounting system: Front

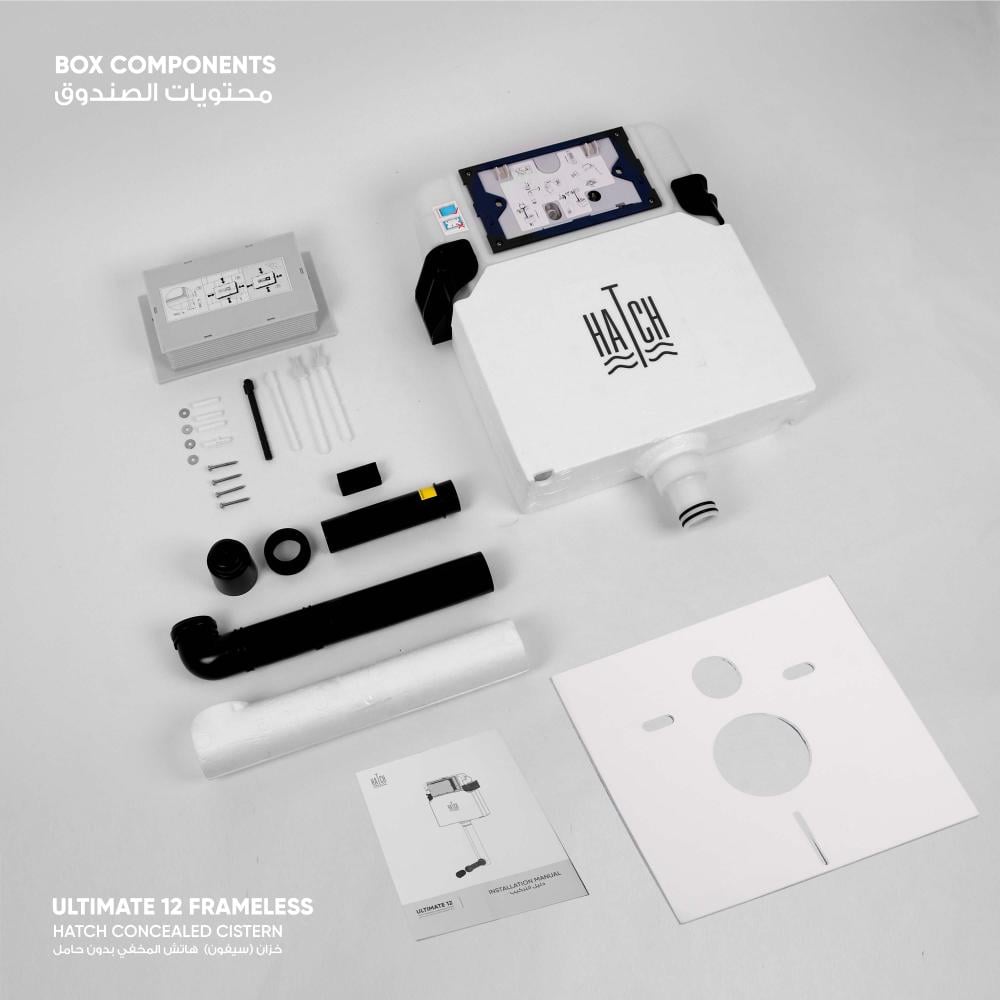

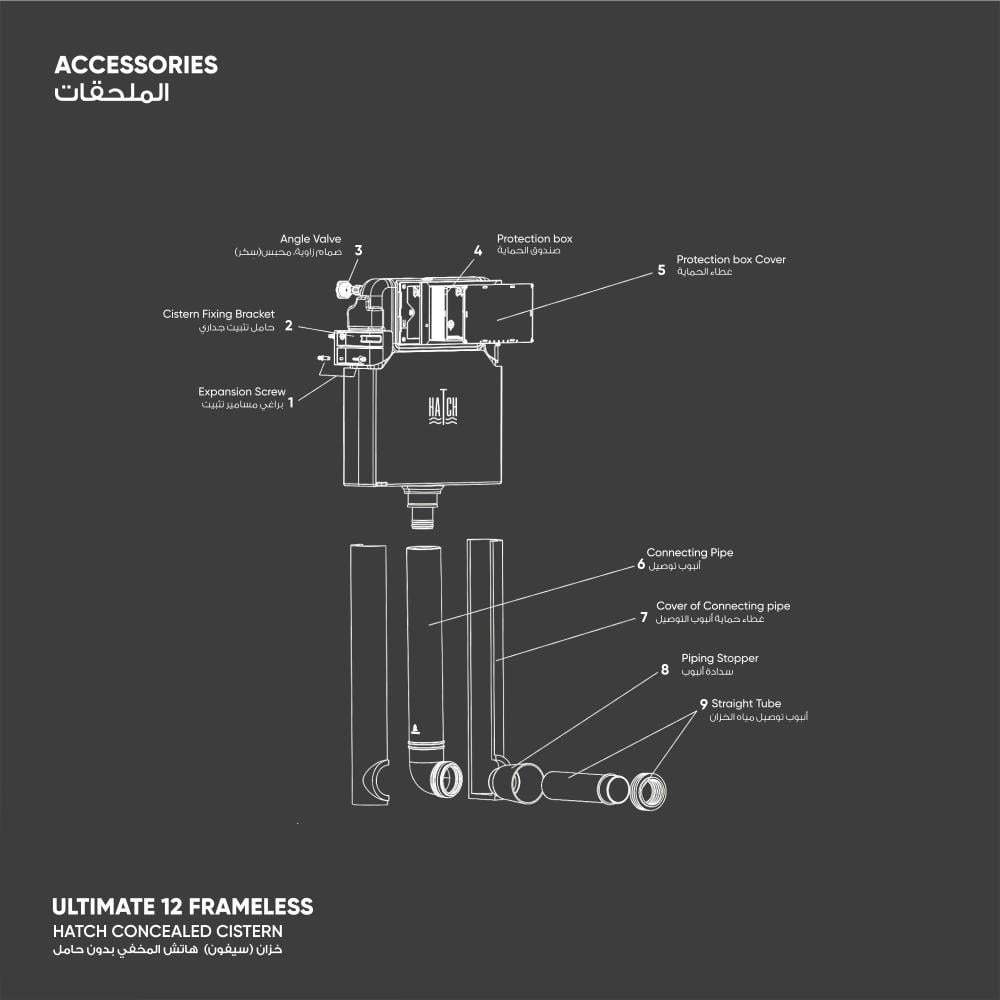

Carton Contents:

• concealed tank without stand
• 4 screws for fixing the concealed tank brackets to the wall and floor
• Compressor mounting bars are soundproof and easy to adjust.
• Angle valve (suck/cock) to control the water supply (to fill or close the tank)
• Protective box to prevent dust and impurities from entering during the foundation process
• Toilet flushing water supply pipe
• Water supply connection pipe can be cut according to the wall thickness.
• Feed tube plug to prevent dust and impurities from entering during the establishment process.
• Felt
• Installation Guide

Product weight: +/- 4.6 kg

Colors: White tank with black mounting bracket

Warranty:

• 10-year warranty

Made in China for Hatch Sanitary Ware

alert!

• Please read the installation manual enclosed before starting the installation process.
• Please do not expose the product to chemicals such as (acid, flash, dextrin, etc.)
• Please clean the product with soft-touch tools and do not use rough tools (such as steel wool or sharp tool) which may cause scratches to the product.

With extension tube: SW-60197989

Without extension tube: SW-60197735

Features:

Technical data 👉
