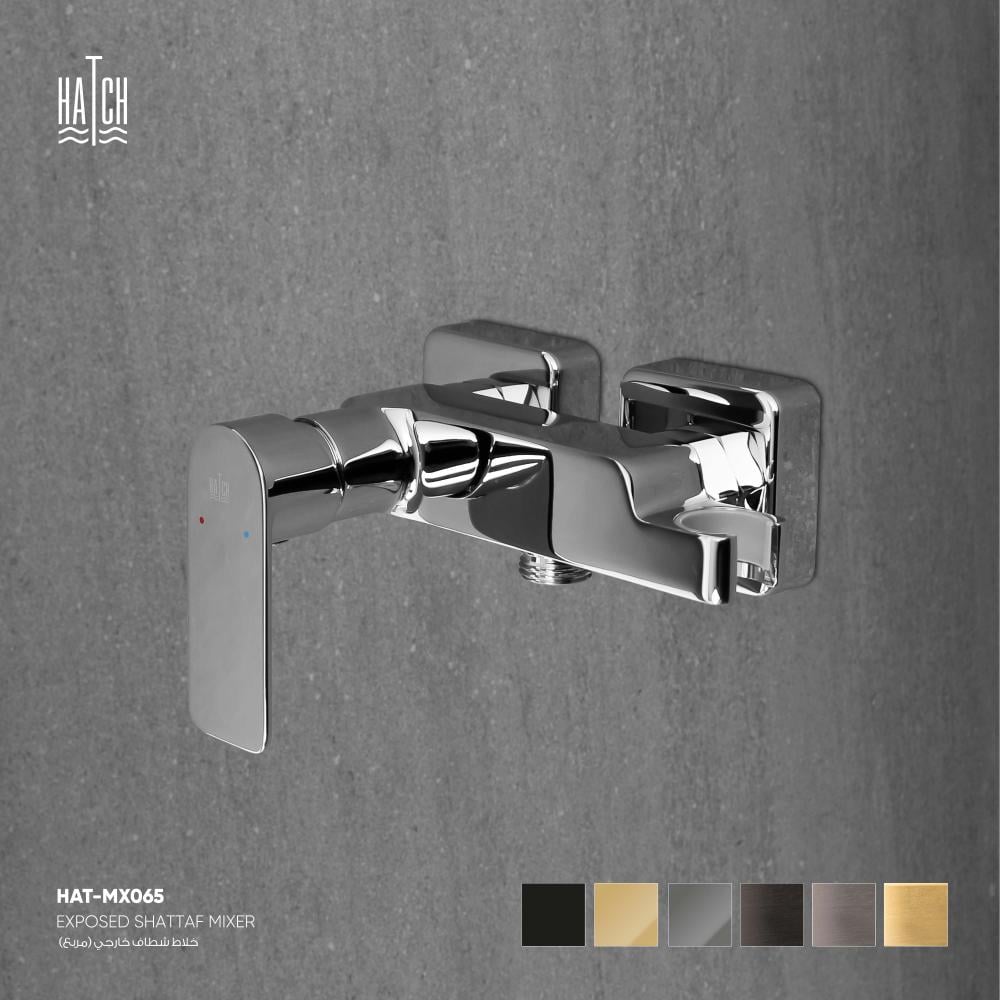

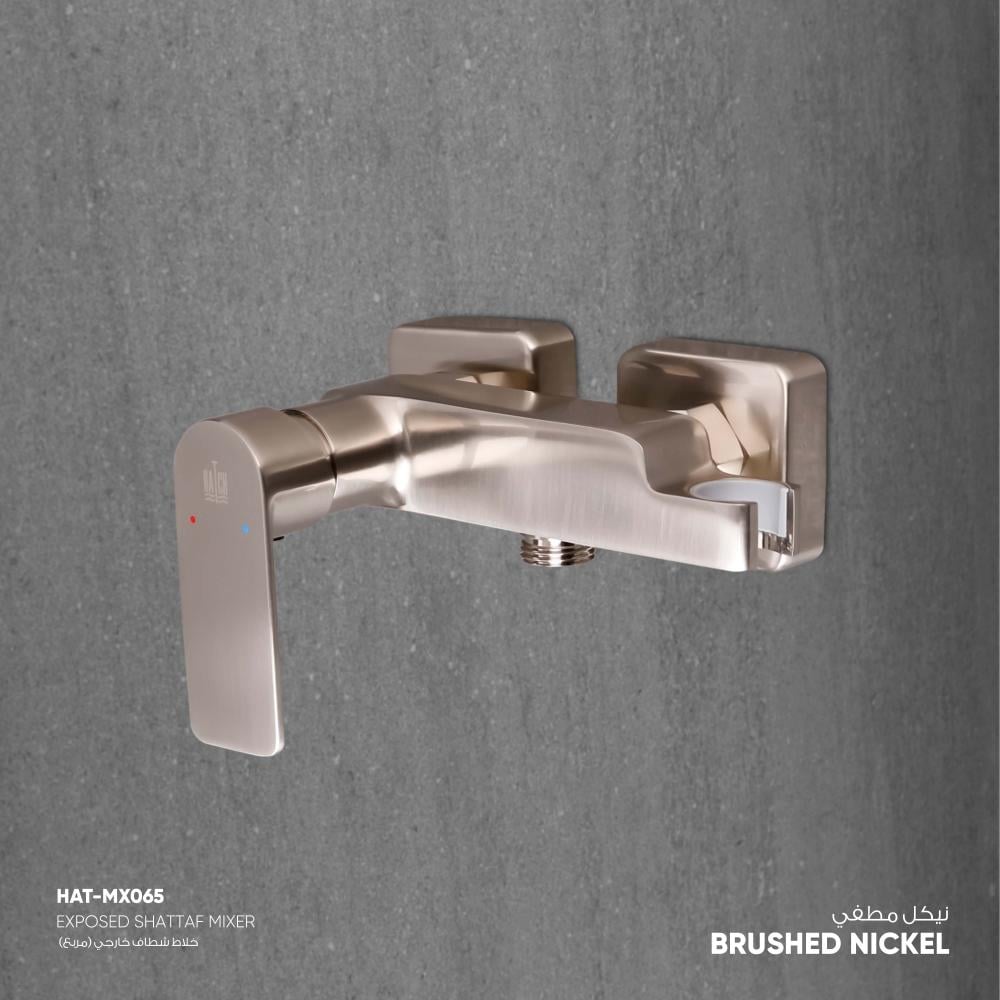

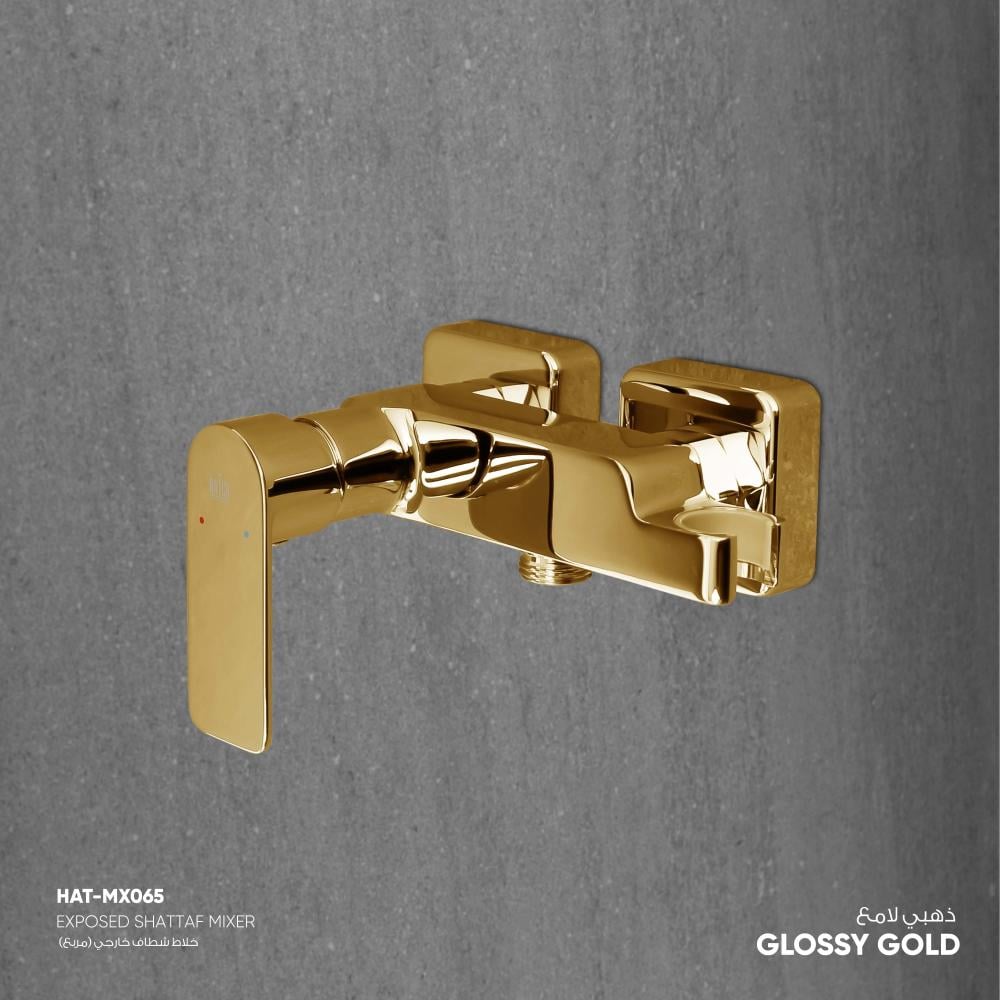

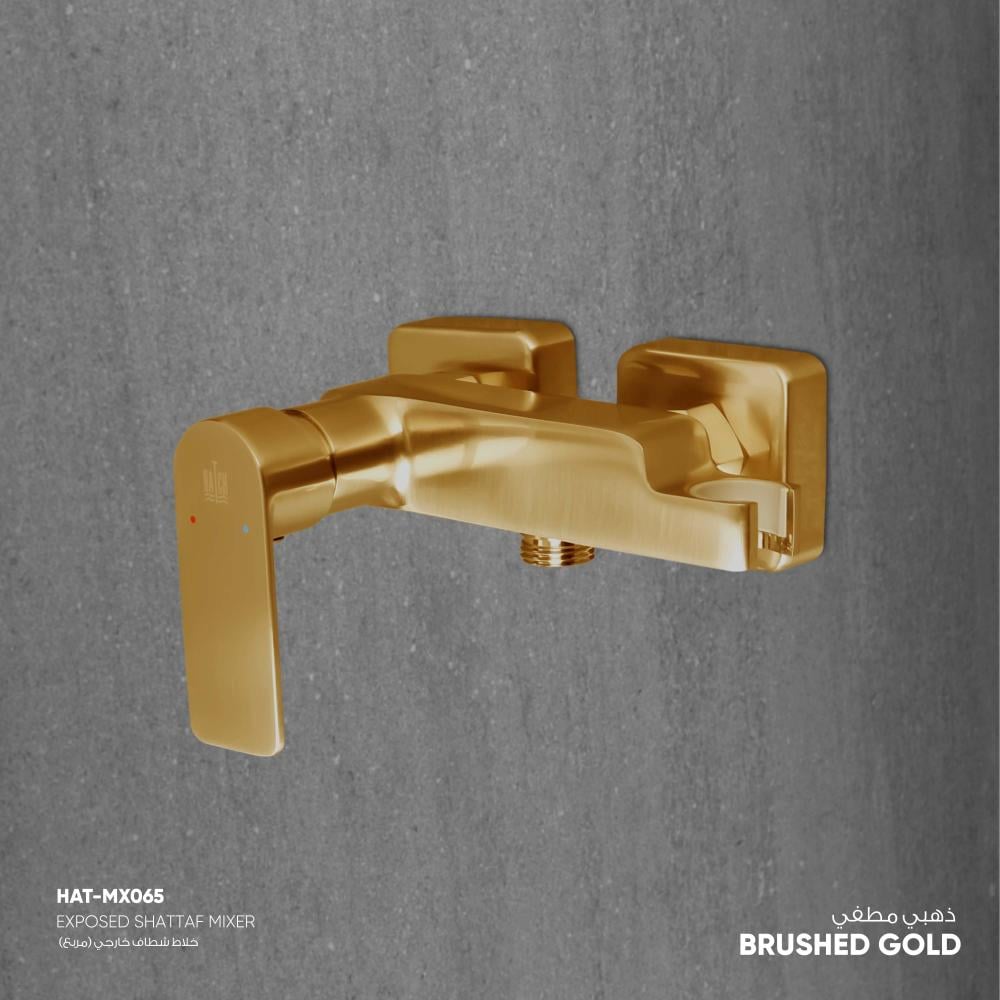

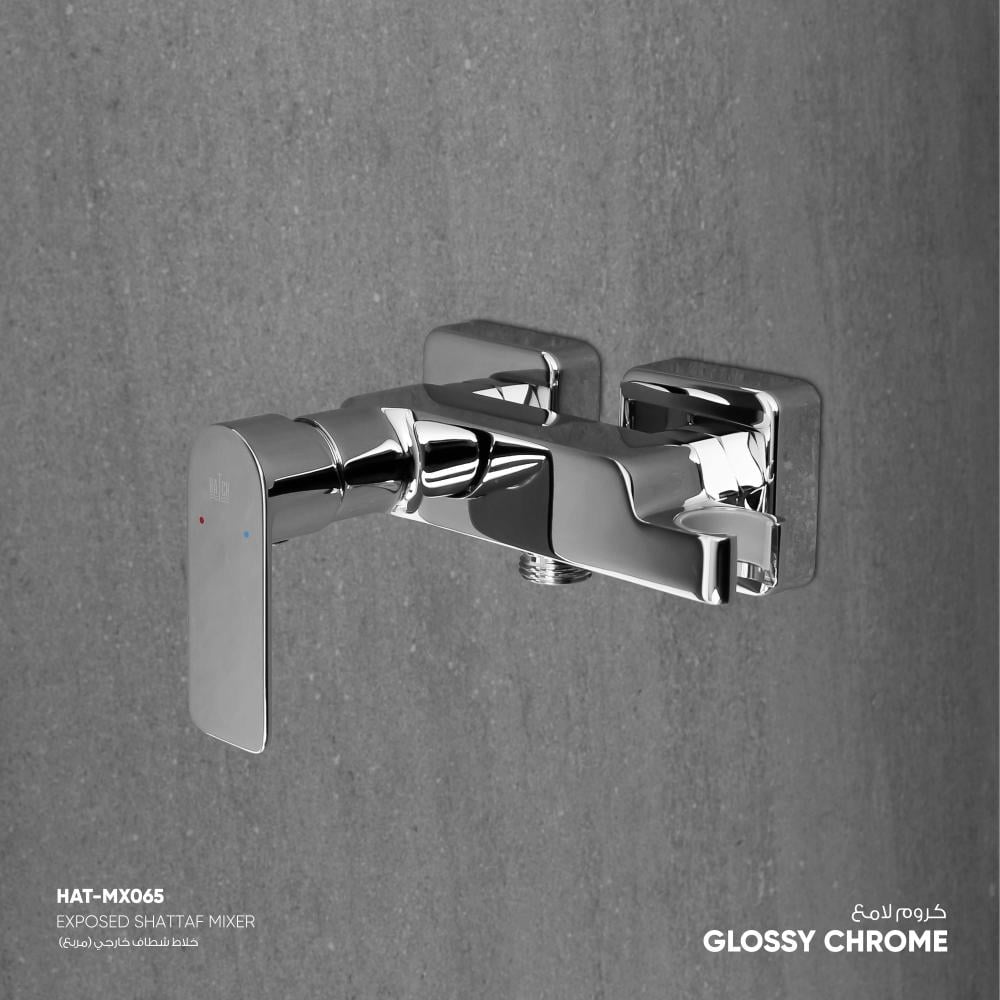

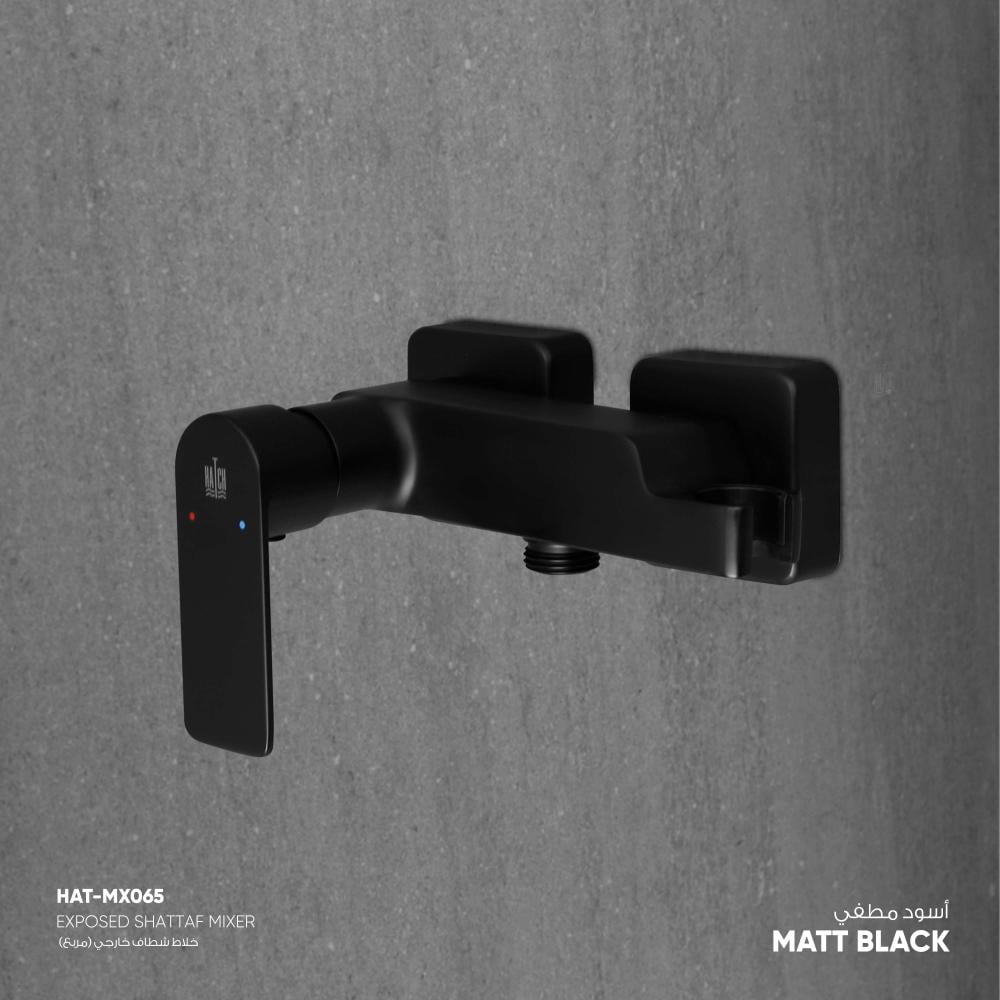

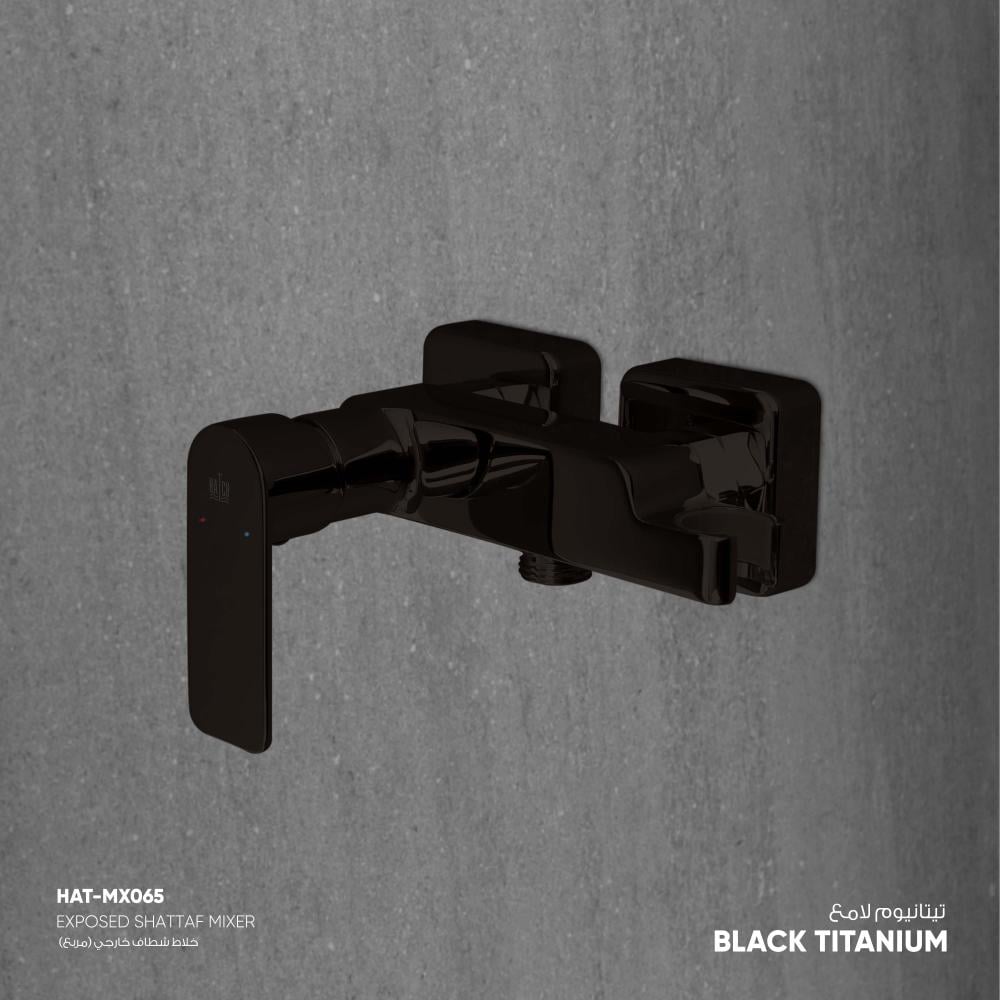

Mini External Bidet Mixer (Square) MX065

Material : All copper mixer with 304 stainless steel frames

The most important specifications:

• Hot/Cold Bidet Mixer with Built-in Holder
• Water outlet for ½ inch bidet hose
• (Hot water heater is installed on the hot water line.
• Maximum temperature 95°C
• Recommended temperature: 4 to 80 degrees Celsius
• Maximum test pressure 10 bar
• Compatible with ½ inch pipes

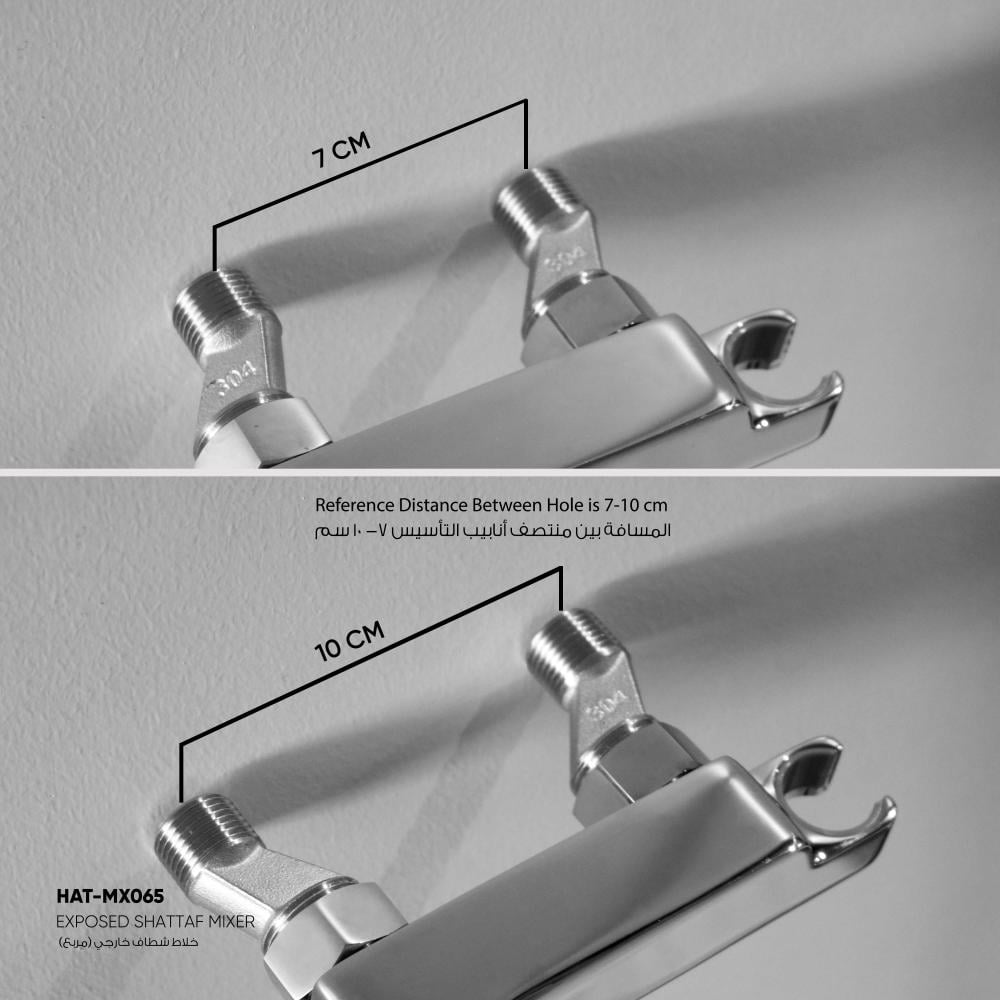

Distance between the middle of the opening and the water source : 7:10 cm

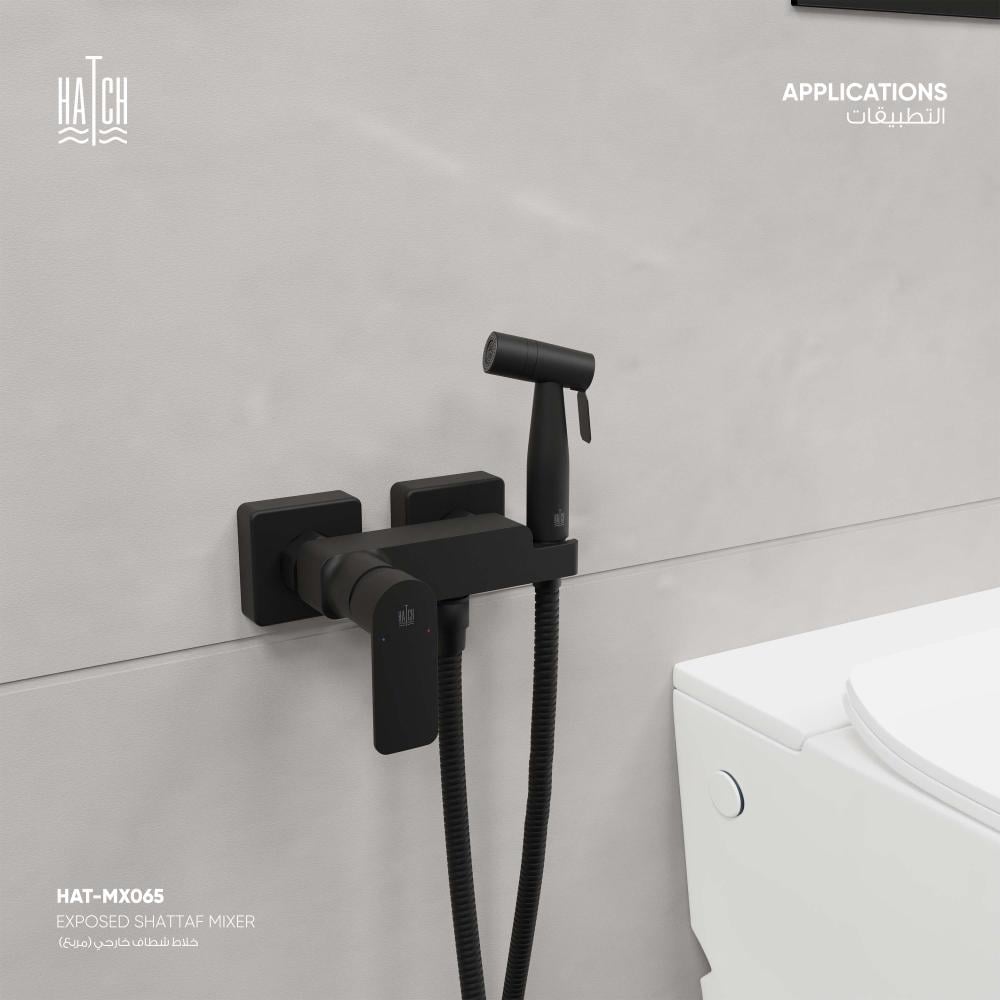

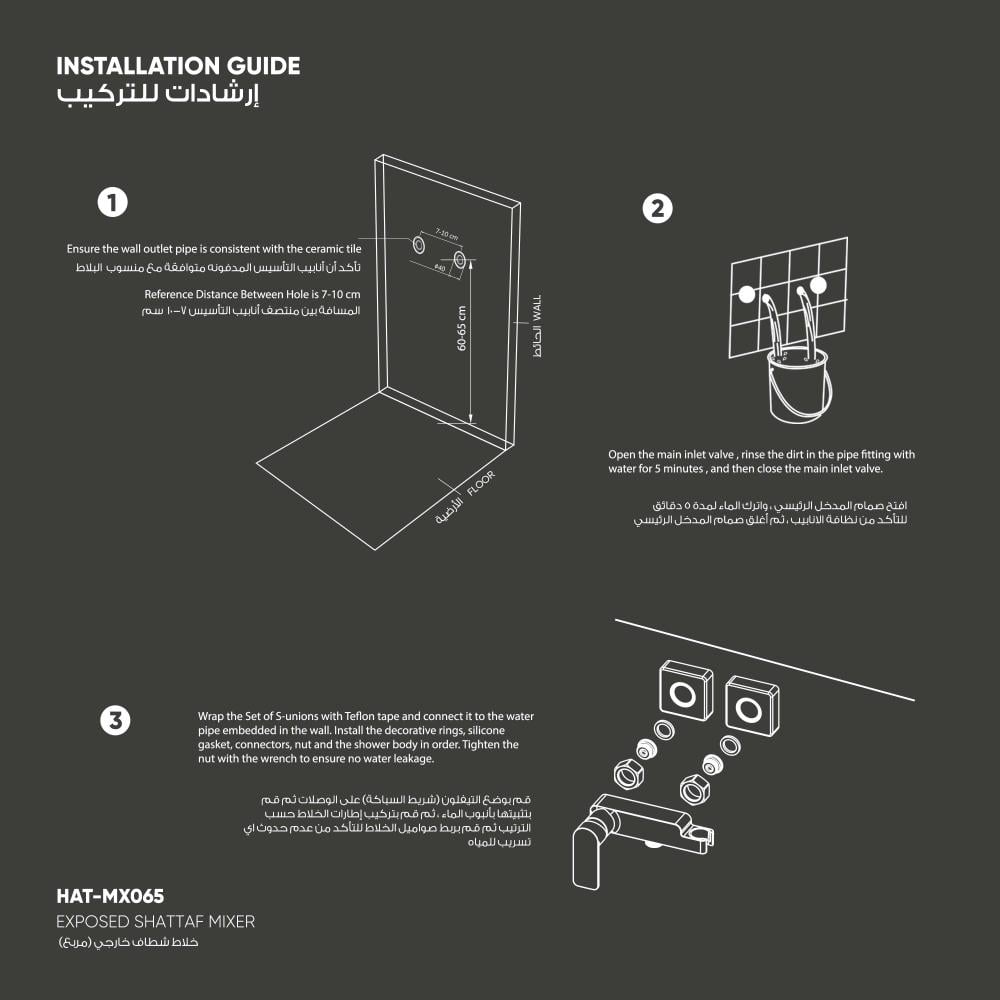

Installation method : For external installation on the wall, it is recommended to establish it at a height of 60 to 65 cm from the finishing level.

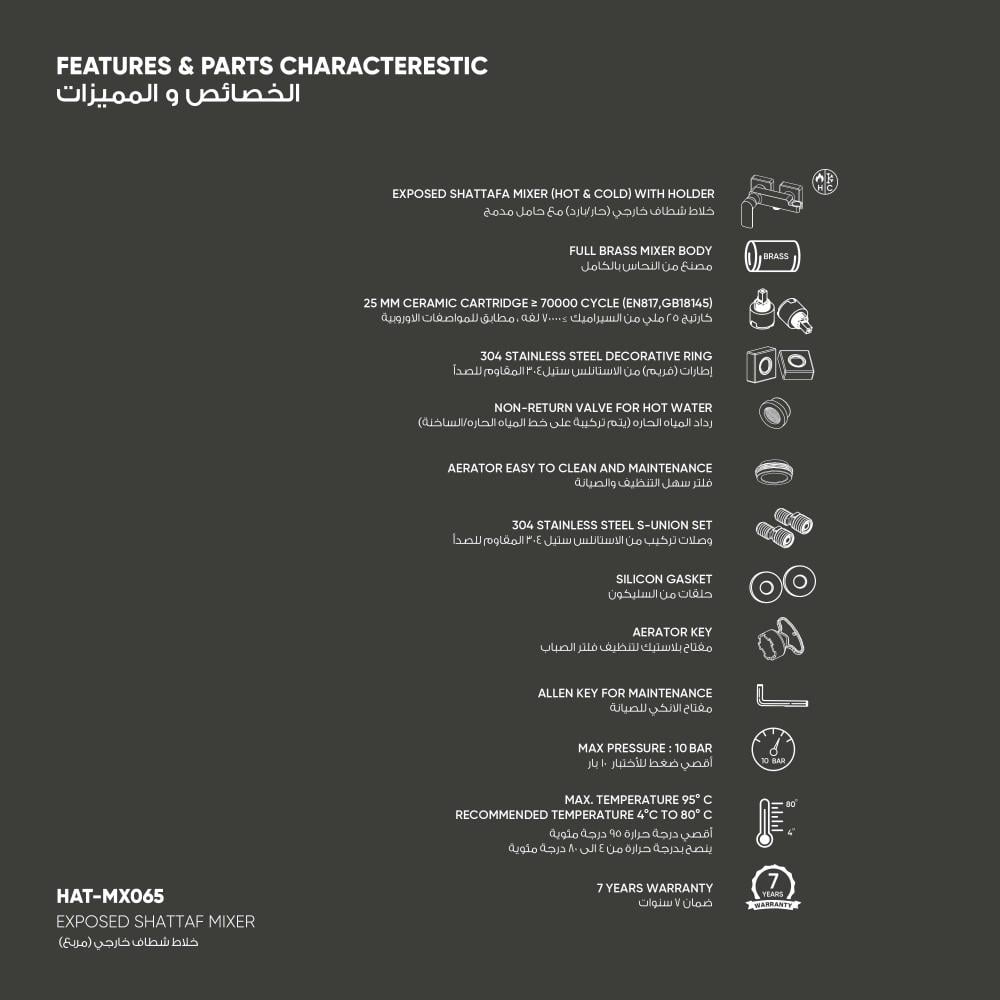

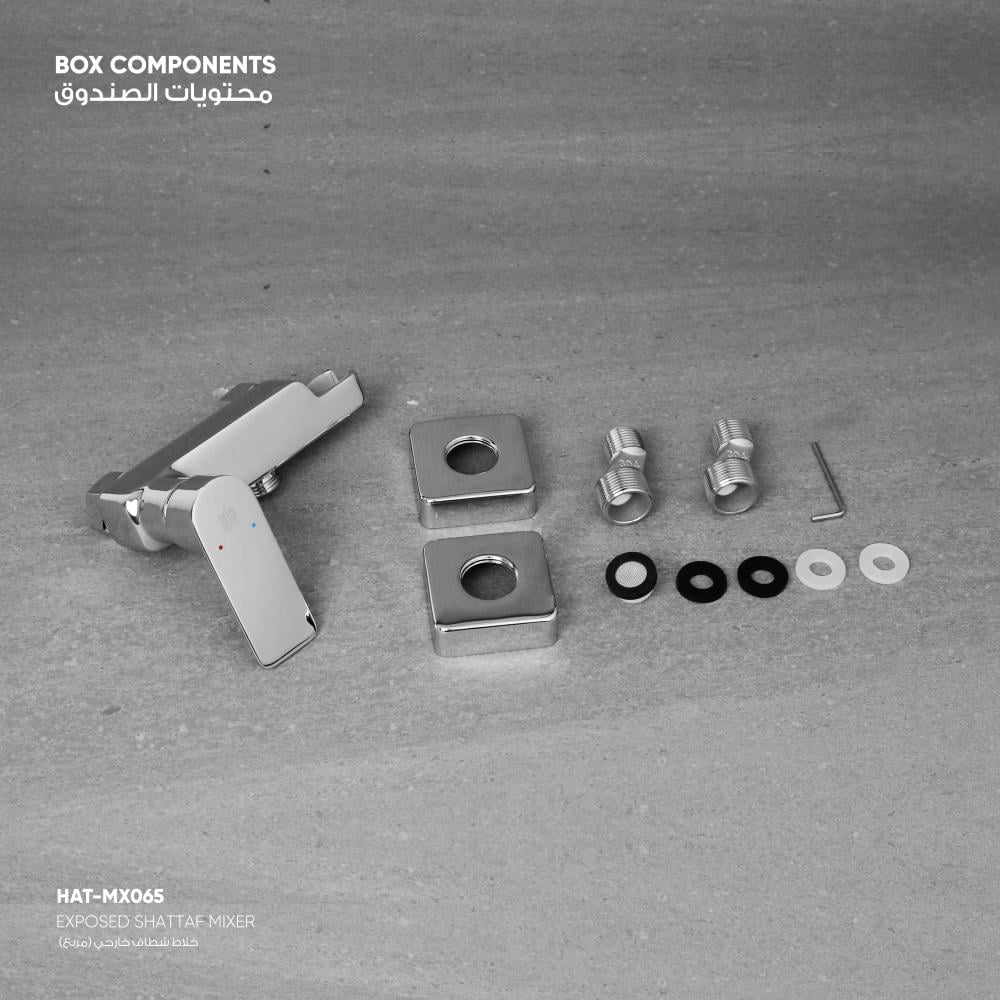

Carton Contents:

• Brass External Bidet Mixer (Hot/Cold) with Built-in Bidet Holder
• 2 x 304 stainless steel circular mixer frame
• Hot water repellent
• 2 silicone sleeves
• 2 additional rubber bushings
• 2 x 304 Stainless Steel Half Inch Male/Female Fittings
• Wrench (to loosen the mixer control arm in case of maintenance)
• Installation Instructions

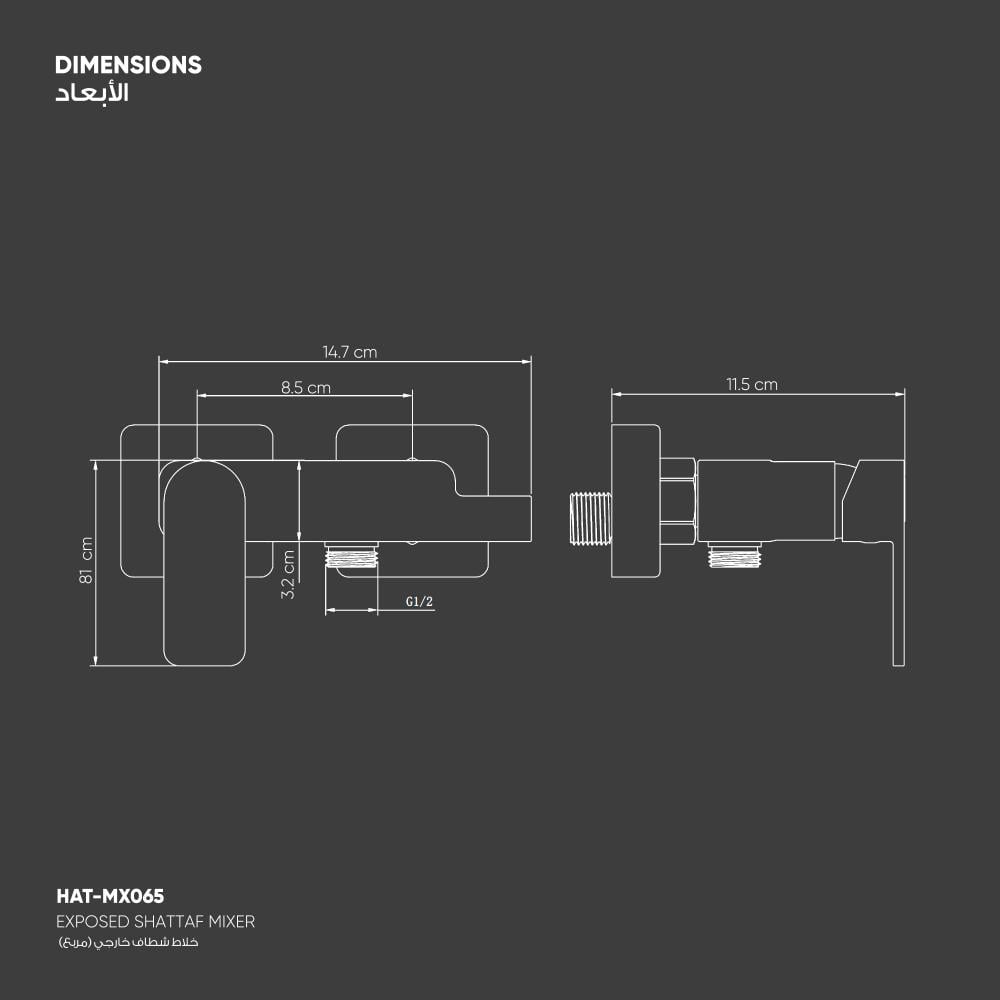

Product Dimensions: 147.47*117.5*88.5mm

Weight : 754 grams.

Warranty : 7 years against manufacturing defects

Country of Origin: Made in China for Hatch Sanitary Ware.

alert !

- Please do not expose the product to chemicals such as (acid, flash, or dextrin, etc.)

- Please clean the product with soft-touch tools and do not use rough tools (such as wire brush or sharp tool) which may cause scratches to the product.
